Flying a Quadcopter in Simulation: Take-off, Figure-8, Landing¶
Simulating a multirotor with SimWeave's flight module: closed-loop control, missions, wind, payload surprises and failing motors.
A drone that works in a demo and a drone that works on a windy Tuesday with a parcel it was never told about are different machines. Finding out which one you have by flying it costs batteries, propellers and sometimes a roof. Finding out in simulation costs a few seconds of CPU.
SimWeave's simweave.flight module gives you a quadcopter you can fly in Python: a physical model, a cascaded flight controller, missions (take off, figure-8, land), wind, and the hooks to inject motor faults and run Monte Carlo campaigns. It needs only numpy, and because it is built on SimWeave's continuous solver it shares a clock with the discrete-event parts of the library.
Table of Contents¶
- Why simulate flight
- The vehicle in one screen
- Your first mission
- How the controller works
- Seeing the flight
- Wind, payloads and weak motors
- Monte Carlo: where will it land?
- When a motor fails
- What this model leaves out
- What's next
- Try it out yourself
Why simulate flight¶
Three questions come up again and again with small multirotors, and all of them are cheaper to answer in software first:
- Does the controller track the path? And how badly does it degrade when conditions change?
- How much margin do I have? Thrust, battery, tilt: where is the cliff?
- What happens when something breaks? A weakened motor is not a hypothetical, it is a Tuesday.
Heavyweight tools exist for this. Autopilot software-in-the-loop setups such as PX4 with Gazebo run the real flight firmware against a 3D physics world, which is the right choice when you are validating a specific autopilot. Physics-engine environments such as gym-pybullet-drones are popular for reinforcement-learning work. Both are substantial installs with a lot of moving parts.
simweave.flight aims at a different spot: a small, readable, fast model that you can drop into a notebook, a Monte Carlo loop, or a larger simulation of a delivery operation. It is honest about what it simplifies (see What this model leaves out), and it does not pretend to replace firmware-in-the-loop testing.
The vehicle in one screen¶
The Quadrotor is a rigid body with four rotors in an "X" layout. Its state has 16 entries:
| Entries | Meaning |
|---|---|
x y z, vx vy vz |
position and velocity, world frame, Z up |
roll pitch yaw |
ZYX Euler angles (positive pitch is nose down) |
p q r |
body rates |
f1 f2 f3 f4 |
actual rotor thrusts, which lag the commanded thrusts with a time constant (motor_tau, 30 ms by default) |
The input is the four commanded rotor thrusts, in newtons. Drag acts on the velocity relative to the air, so wind pushes the vehicle. The default parameters describe a 1.2 kg sport quad:
from simweave.flight import Quadrotor
quad = Quadrotor()
print("hover thrust per rotor", round(quad.hover_thrust, 3), "N")
print("max thrust per rotor ", quad.max_thrust, "N")
print("thrust-to-weight ", round(quad.params.thrust_to_weight, 2))
A Mixer turns what a controller wants (total thrust and three body torques) into four rotor thrusts that stay within limits. When a request does not fit, it gives up collective thrust before it gives up attitude torque, because a vehicle that is the wrong way up is worse off than one that is slowly sinking:
import numpy as np
from simweave.flight import Mixer
mixer = Mixer(quad.params)
print(np.round(mixer.allocate(quad.params.weight, (0.0, 0.0, 0.0)), 3))
print(np.round(mixer.allocate(quad.params.weight, (0.02, 0.0, 0.0)), 3))
The first call is plain hover. The second asks for a small roll torque, so the left rotors push a little harder than the right.
Your first mission¶
A Mission is a chain of segments. Mission.figure8 builds the classic: climb, hover, blend into a figure-8, fly it, blend out, hover, and land softly. Every join is continuous in position, velocity and acceleration, so the controller is never asked to follow an impossible jump.
from simweave.flight import Mission, Quadrotor, fly
mission = Mission.figure8(height=3.0, a=4.0, b=2.0, period=20.0)
for name, start, end in mission.phases:
print(f"{name:<10s} {start:5.1f} -> {end:5.1f} s")
flight = fly(Quadrotor(), mission)
print({k: round(v, 3) for k, v in flight.metrics().items()})
takeoff 0.0 -> 4.0 s
hover 4.0 -> 6.0 s
transition 6.0 -> 9.0 s
figure8 9.0 -> 29.0 s
transition 29.0 -> 32.0 s
hover 32.0 -> 34.0 s
land 34.0 -> 40.0 s
landed 40.0 -> 42.0 s
{'rms_error': 0.018, 'max_error': 0.072, 'max_tilt_deg': 15.594, 'saturation_fraction': 0.0, 'energy_wh': 1.027, 'duration': 42.0, 'touchdown_speed': -0.397, 'landing_error': 0.001}
A 42 second flight tracks its reference to 1.8 cm RMS, never leans more than about 16 degrees, touches down at 0.4 m/s and uses about a watt-hour of rotor energy. flight.phase_rms() breaks the error down by phase:
{'takeoff': 0.025, 'hover': 0.016, 'transition': 0.032, 'figure8': 0.013, 'land': 0.003, 'landed': 0.001}
The figure-8 itself is the easy part (1.3 cm). The vehicle struggles most when it lifts off and when it accelerates into the loop.
The results come in two shapes. flight.to_dict() gives columns time, x, y, z, roll, pitch, yaw first (Z up, radians) followed by velocities, rates and rotor thrusts, and flight.to_frame() returns the same as a pandas DataFrame if pandas is installed. flight.to_viewer() maps the same data to a Y-up convention for 3D viewers, which is how this simulation can drive a model in a web-based viewer.
How the controller works¶
fly builds a CascadedController, the structure almost every real multirotor uses: outer loops decide where to go, inner loops decide how to lean and spin.
reference (position, velocity, acceleration, heading)
position P -> velocity setpoint (speed limited)
velocity PI -> desired acceleration
thrust vector -> total thrust and the direction the vehicle must point
attitude error -> body-rate setpoint
rate PI -> body torques
mixer -> four rotor thrusts
The key idea is the thrust-vector step. A quadcopter can only push along its own "up" axis, so to accelerate sideways it must lean. The controller works out the thrust vector needed (mass * (acceleration + gravity)), points the vehicle along it, and takes the total thrust from the part that lines up with the vehicle's current axis. A 35 degree tilt limit keeps the request sane.
The controller is a sampled-data controller, like real firmware: it runs at a fixed rate (here 125 Hz) and holds its output constant while the physics integrates in finer steps. SimWeave's solver supports this directly, so you can use the pieces yourself:
from simweave.continuous import simulate
from simweave.flight import CascadedController, Mission, Quadrotor
quad = Quadrotor()
mission = Mission.figure8()
ctrl = CascadedController(mission, quad.params)
result = simulate(quad, (0.0, mission.duration), dt=0.004,
controller=ctrl, control_dt=0.008)
print(result.state.shape, result.state_labels[:6], "final z", round(float(result.state[-1, 2]), 3))
controller= accepts anything with an update(t, state, dt) method returning the input, so the same hook works for your own control law, or for the PID controller from simweave.continuous.control on a simpler plant.
Tuning
All gains and limits live in ControllerGains. Rate-loop gains act on angular acceleration, so they do not need rescaling when you change the vehicle's inertia.
Seeing the flight¶
Two plot helpers take a flight directly. Both return Plotly figures, so fig.show(), fig.write_html(...) and fig.to_json() all work.
from simweave.flight import ConstantWind
from simweave.viz import plot_trajectory_3d, plot_flight_summary
flight = fly(Quadrotor(wind=ConstantWind((4.0, 0.0, 0.0))), mission)
plot_trajectory_3d(flight).show()
plot_flight_summary(flight).show()

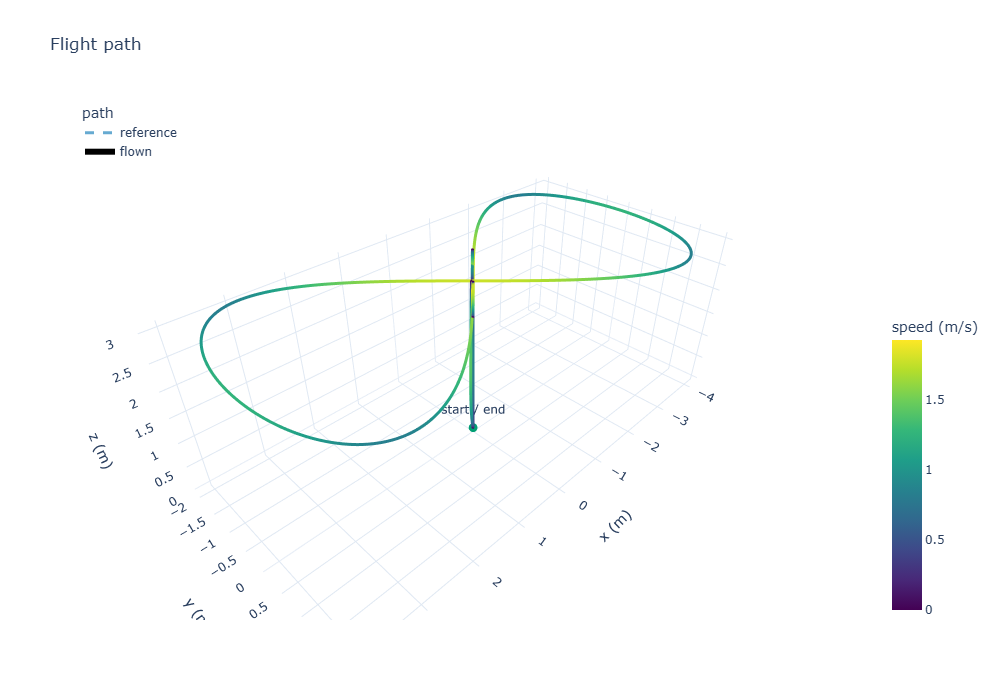

The figure-8 flown in a steady 4 m/s wind, coloured by speed. The vertical line is the take-off and landing.

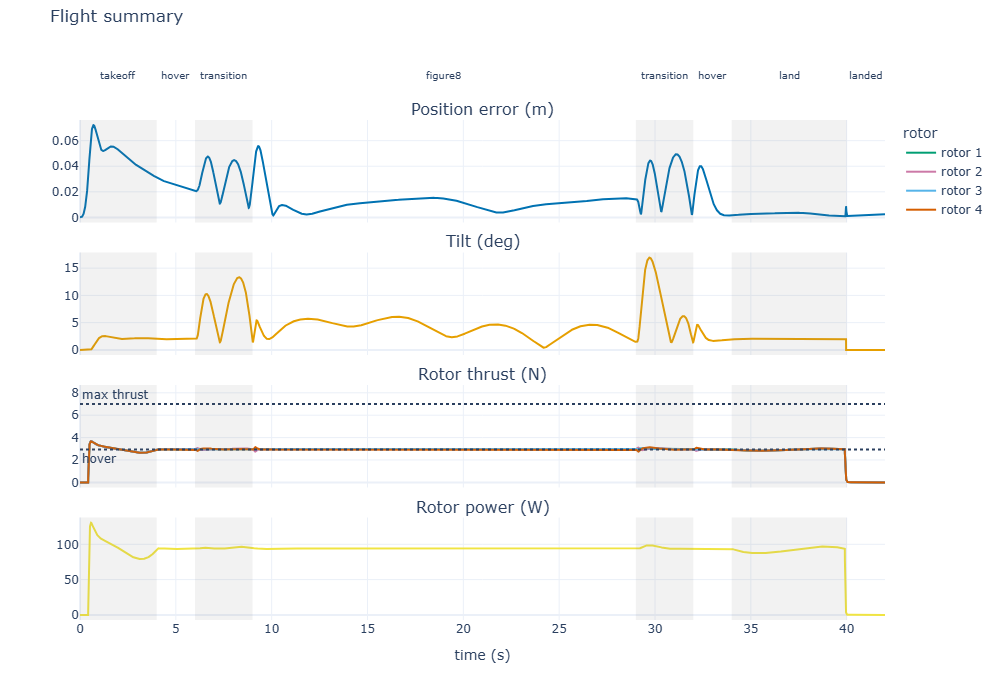

Four panels over time, with mission phases shaded. The error peaks as the vehicle lifts off, and the rotors sit just above hover thrust throughout.
What to look for
The rotor panel shows the thrust limit and the hover thrust as dotted lines. The gap between your rotors and the top line is your margin. When a flight goes wrong, this is the panel that shows why.
Wind, payloads and weak motors¶
The controller models the vehicle with vehicle.params. If you change the vehicle afterwards, the controller does not know, which is exactly the situation in a real deployment: a parcel you did not weigh, a motor that is wearing out. The integral terms are supposed to absorb it, and this is how you check:
from simweave.flight import ConstantWind, GustWind, Mission, Quadrotor, fly
mission = Mission.figure8()
def run(quad):
m = fly(quad, mission).metrics()
return m["rms_error"], m["max_error"], m["energy_wh"]
heavy = Quadrotor()
heavy.mass *= 1.25 # a payload the controller does not know about
weak = Quadrotor()
weak.motor_eff_1 = 0.8 # rotor 1 delivers only 80 % of commanded thrust
cases = {
"nominal": Quadrotor(),
"5 m/s steady wind": Quadrotor(wind=ConstantWind((5.0, 0.0, 0.0))),
"6 m/s gust": Quadrotor(wind=GustWind((6.0, 0.0, 0.0), start=15.0, duration=3.0)),
"payload +25 %": heavy,
"rotor 1 at 80 %": weak,
}
for name, quad in cases.items():
print(name, run(quad))
| Case | RMS error (m) | Max error (m) | Energy (Wh) |
|---|---|---|---|
| Nominal | 0.018 | 0.072 | 1.03 |
| 5 m/s steady wind | 0.025 | 0.072 | 1.03 |
| 6 m/s gust at t = 15 s | 0.023 | 0.087 | 1.03 |
| Payload +25 % (unknown) | 0.061 | 0.239 | 1.44 |
| Rotor 1 at 80 % | 0.035 | 0.148 | 1.13 |
Wind barely matters: the vehicle leans into it and the integral terms cancel it. The payload costs the most, both in accuracy (the controller has to discover the extra weight through its integrators) and in energy, which grows with mass to the power 1.5 (momentum theory). All of them land softly.
Monte Carlo: where will it land?¶
fly is an ordinary function of a vehicle and a mission, so it drops straight into SimWeave's Monte Carlo runner. Demo 28 flies the mission 24 times with a random steady wind (0 to 8 m/s from any direction), seeded turbulence, and an unknown payload between 0 and 30 % extra:
import numpy as np
from simweave.flight import Mission, Quadrotor, TurbulentWind, fly
from simweave.mc import run_monte_carlo
MISSION = Mission.figure8(height=3.0, period=20.0)
def scenario(seed):
rng = np.random.default_rng(seed)
speed, heading = rng.uniform(0, 8), rng.uniform(0, 2 * np.pi)
wind = TurbulentWind(
sigma=1.0, correlation_time=1.5, duration=MISSION.duration + 1.0,
mean=(speed * np.cos(heading), speed * np.sin(heading), 0.0), rng=rng,
)
quad = Quadrotor(wind=wind)
quad.mass *= rng.uniform(0.9, 1.3)
td = fly(quad, MISSION).touchdown()
return [td["x"], td["y"], td["vertical_speed"]]
mc = run_monte_carlo(scenario, n_runs=24, executor="processes")
The full script is demos/28_quadcopter_wind_montecarlo.py. Across the 24 flights:
RMS tracking error median 0.037 m, worst 0.078 m
Touchdown speed median -0.34 m/s, hardest -0.66 m/s
Landing miss 50% within 0.02 m, 95% within 0.03 m
Rotor energy 1.17 Wh on average (0.90-1.51)

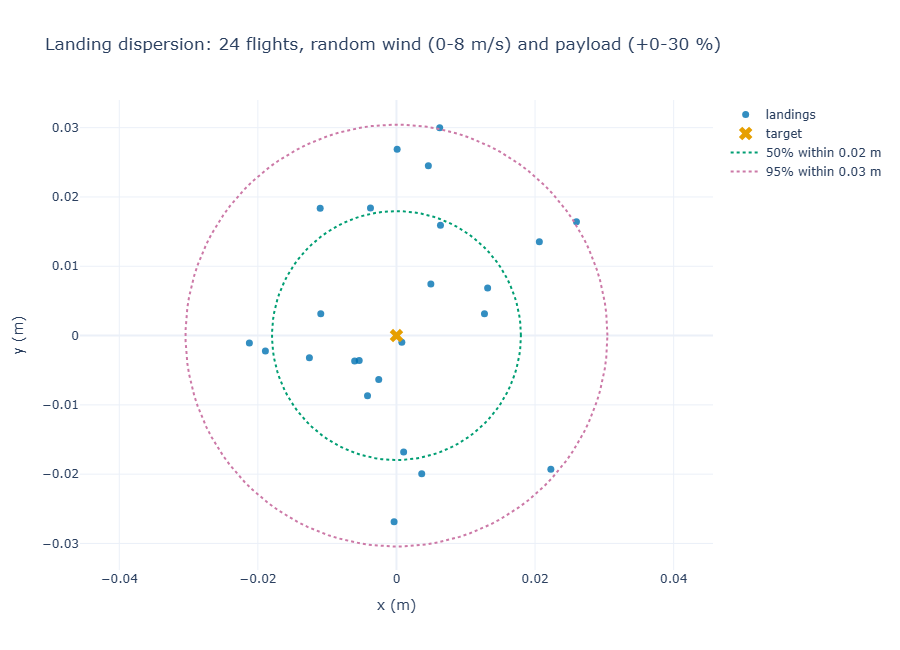

24 landings, with circles containing 50 % and 95 % of them (plot_landing_dispersion).
Define the scenario at module level
With executor="processes" the scenario function is pickled and sent to worker processes, so it must be defined at the top level of a module, not inside another function. Each replicate builds its own generator from its seed, so the whole campaign is reproducible.
Twenty-four flights is a demonstration, not a certification: the point is that the whole campaign takes seconds, so you can run hundreds.
When a motor fails¶
A FaultInjector wraps the quadrotor and perturbs a named parameter over time, exactly as it does for the thermal and mechanical models in the predictive maintenance post. Each rotor's thrust scale is exposed as motor_eff_1 to motor_eff_4, so degrading one rotor is a few lines:
from simweave.faults import FaultInjector, FaultProfile, ParameterFault
profile = FaultProfile(onset_time=12.0, failure_time=26.0,
mode="rotor_degradation", shape="linear")
fault = ParameterFault(param="motor_eff_1", profile=profile, max_delta=-0.5)
flight = fly(FaultInjector(Quadrotor(), [fault]), mission)
Rotor 1 loses 50 % of its thrust between 12 and 26 seconds. The controller has no idea, but its integrators push that rotor harder, and the others compensate. Compare three flights, with the loss at 0 %, 50 % and 60 %:
| Case | RMS error (m) | Max error (m) | Time saturated | Energy (Wh) | Outcome |
|---|---|---|---|---|---|
| Healthy | 0.018 | 0.07 | 0 % | 1.03 | lands at 0.40 m/s |
| 50 % loss | 0.072 | 0.18 | 0 % | 1.25 | lands at 0.31 m/s |
| 60 % loss | 1.331 | 3.02 | 36 % | 1.33 | crash |

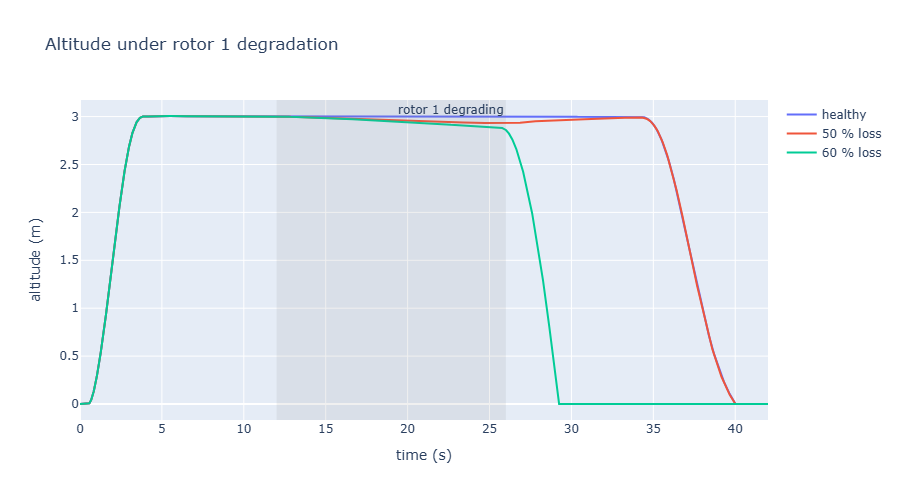

Altitude for the three flights. The shaded band is when rotor 1 is degrading.
There is a clean explanation for the cliff between 50 % and 60 %. To hover, the weakened rotor must still deliver hover thrust (2.94 N), so its command must be 2.94 / efficiency. The rotor tops out at 7 N, so the limit is reached at an efficiency of about 0.42, a loss of 58 %. Below that, no controller can hold the vehicle. For the default vehicle that margin is 1 - hover_thrust / max_thrust:
Why this matters for predictive maintenance
Up to the cliff the flight looks fine from the outside: error stays at a few centimetres, but the energy used over the mission is about 20 % higher and one rotor is working much harder than the others. Those are exactly the signals a health-monitoring model would watch.
What this model leaves out¶
Honest limits, so you know when to trust it:
- Perfect sensing. The controller sees the true state. There is no IMU noise, GPS error or state estimator, which matters a lot on real aircraft.
- Simple aerodynamics. Drag acts on the air-relative velocity. There is no blade flapping, rotor inflow, ground effect or propeller wash.
- Euler angles. The attitude kinematics are singular at 90 degrees of pitch, so the mission is tilt-limited and flips are out of scope.
- Idealised rotors. A first-order thrust lag and a thrust limit, with no battery sag or motor electrical model. The energy estimate uses momentum theory with a fixed figure of merit.
- A friendly controller. The cascade is well-behaved, but it is a reference design, not the firmware on your drone. If you need to validate a specific autopilot, use its own software-in-the-loop setup.
What's Next¶
- A SimWeave node in EdgeWeave.
to_viewer()already produces the columns that EdgeWeave's 3D viewer expects, so a simulated flight can replace the hard-coded drone path in the demo. - Wider flight dynamics. A quaternion-based six degrees of freedom base, an atmosphere model and a fixed-wing vehicle are planned, built from what this module taught us rather than designed in advance.
- Hybrid operations. A delivery drone is a continuous flight inside a discrete operation. Orders arrive, a drone flies for the time the physics says it takes, and then it recharges. SimWeave's
ContinuousProcessalready lets the two share a clock.
Try it out yourself¶
Run every snippet in this post in your browser, with no install required:
The notebook lives in the companion repository, simweave-notebooks. The scripts used in this post are also in the library's demos folder: 27_quadcopter_figure8.py, 28_quadcopter_wind_montecarlo.py and 29_quadcopter_motor_fault.py.
