Suspension Dynamics: From Quarter Car to Full Vehicle¶
Physics-based vehicle modelling and ideal active control with SimWeave.
Every time your car hits a pothole, two things happen simultaneously: the wheel tries to follow the road surface up and over the obstacle, and the car body tries to stay still. The suspension system — spring, damper, and tyre — mediates between those two desires. Get the balance wrong and you either have a ride that hammers your spine (too stiff) or a car that wallows like a boat and loses tyre contact with the road (too soft).
Vehicle engineers spend enormous effort characterising this trade-off. The tools of choice are differential equation models of increasing complexity: quarter car, half car, and full car. This post walks through all three using SimWeave, shows how the library's SIUnits system catches dimensional errors before they reach your results, and finishes with the two theoretical ideal controllers — Skyhook and Groundhook — that give researchers a benchmark to aim for.
Why Bother Modelling Suspension?¶
Before writing any code, it's worth being concrete about why this matters:
- NVH engineering (Noise, Vibration, Harshness): OEMs model hundreds of road-surface profiles and tune damper maps to hit ISO 2631 comfort targets.
- ADAS and autonomous vehicles: A model that predicts wheel-hop frequency informs when radar/camera measurements are most likely to be noisy.
- Motorsport: Quarter-car models are fast enough to run inside optimisation loops that sweep spring rates and anti-roll settings overnight.
- EV platform design: Battery-floor architectures shift the centre of gravity downward and change pitch/roll dynamics — fast iteration needs simulation.
Python has scipy.integrate.solve_ivp which works fine for one-off experiments, and MATLAB/Simulink is the industry gold standard (but expensive and closed). SimWeave sits between them: physics-first, units-aware, and open.
A Note on Units First¶
Real suspension parameters span many orders of magnitude: tyre stiffness is ~200,000 N/m, sprung mass is ~300 kg, and the speed-bump height is measured in millimetres. Using raw floats is a recipe for factor-of-1000 mistakes.
SimWeave's simweave.units module tracks the seven SI base dimensions on every quantity. When you multiply or divide, the result is automatically re-typed to the appropriate concrete class:
from simweave.units.si import Distance, TimeUnit, Velocity, Mass, Acceleration, Force
from simweave.units.constants import kg, m, s, g
# Literal expressions using constants
weight = 80 * kg * g # -> Force [784.8 N]
energy = Mass(1.0) * (3e8*m/s)**2 # E = mc² (illustrative)
# Parsing units in the constructor — no manual conversion
t_drive = TimeUnit(2.0, unit="mins") # stored internally as 120.0 s
d_sprint = Distance(100.0, unit="ft") # stored internally as 30.48 m
# Arithmetic propagates dimension and type automatically
v = Distance(120.0) / TimeUnit(2.0) # Velocity [60.0 m/s]
a = v / TimeUnit(10.0) # Acceleration [6.0 m/s²]
f = Mass(1500.0) * a # Force [9000.0 N]
# Dimension mismatch is caught at runtime — not silently wrong
Distance(10.0) + TimeUnit(2.0) # TypeError: incompatible dimensions
The models themselves use these types in STATE_UNITS to annotate what each state variable represents. After a simulation you can ask the model to wrap the raw NumPy output back into typed quantities:
result = simulate(model, (0.0, 5.0), dt=0.001, inputs=road_input)
typed = model.wrap_states(result) # dict[str, SIUnit]
print(typed["z_s"].max()) # Distance — peak body displacement
print(typed["z_s_dot"].max()) # Velocity — peak body velocity
This is especially useful when feeding suspension outputs into downstream calculations (e.g. computing dynamic tyre loads as a Force) because the type checker will refuse to add a Velocity to a Mass.
The Quarter Car Model¶

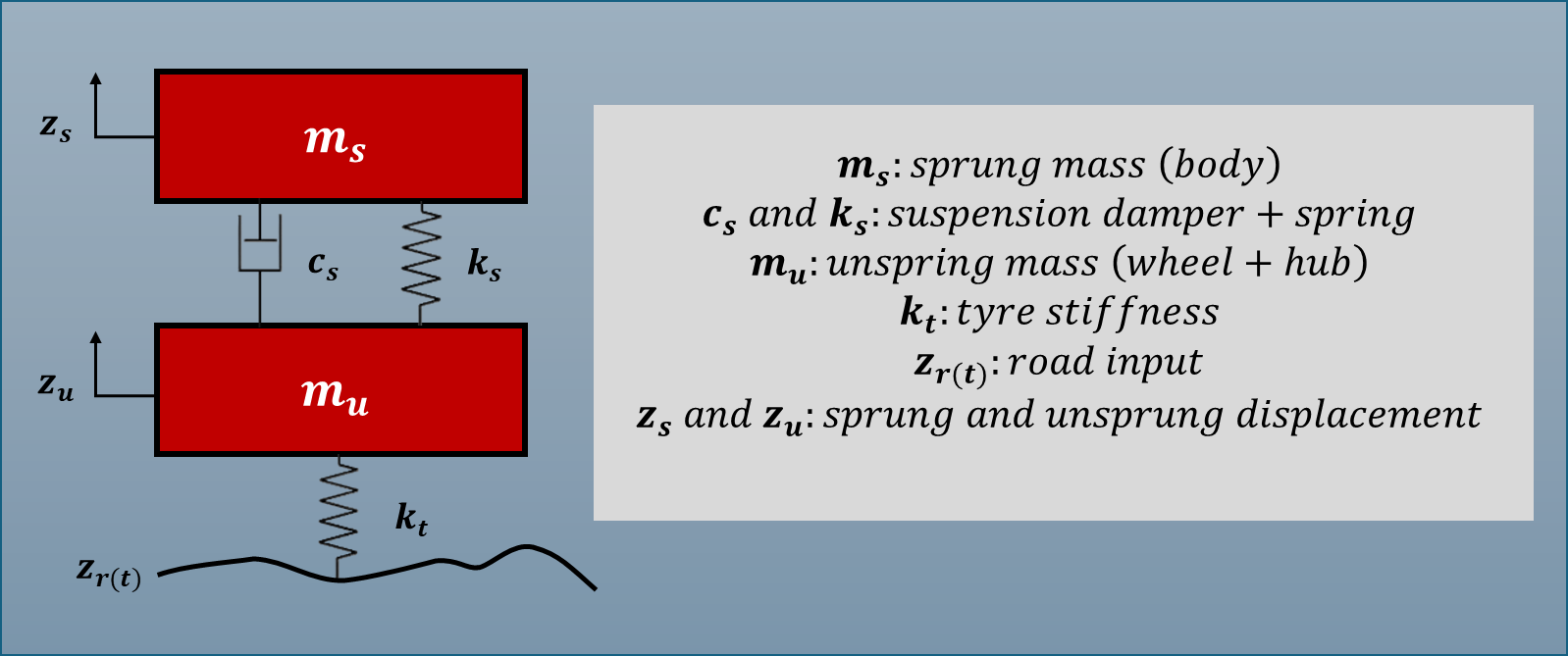

The simplest useful suspension model treats one corner of the vehicle in isolation: a sprung mass (a quarter of the car body, ~250–300 kg) sitting on a suspension spring and damper, itself resting on an unsprung mass (wheel, hub, brake assembly, ~40–50 kg), which contacts the road through the tyre spring (very stiff, ~200,000 N/m).
m_s ─── sprung mass (body)
|
k_s / c_s ─── suspension spring + damper
|
m_u ─── unsprung mass (wheel + hub)
|
k_t ─── tyre stiffness
|
z_r(t) ─── road input
The equations of motion are:
The state vector is [z_s, ż_s, z_u, ż_u] — body and wheel position and velocity. The road profile z_r(t) enters as an external input.
from simweave.continuous.solver import simulate
from simweave.continuous.systems import QuarterCarModel
import numpy as np
def road_bump(t: float) -> float:
"""A 10 cm speed bump traversed over 0.6 seconds."""
t0, duration, height = 1.0, 0.6, 0.10
if t < t0 or t > t0 + duration:
return 0.0
return height * np.sin(np.pi * (t - t0) / duration)
model = QuarterCarModel(
sprung_mass=250.0, # kg — body
unsprung_mass=40.0, # kg — wheel assembly
suspension_stiffness=18_000.0, # N/m
damping=1_500.0, # Ns/m
tyre_stiffness=200_000.0, # N/m
)
result = simulate(model, t_span=(0.0, 5.0), dt=0.001, method="rk4",
inputs=road_bump)
simulate() uses a fixed-step RK4 integrator (or Euler for speed-sensitive work). The result object carries .time, .state, and .state_labels.
Comparing Damping Setups¶
The single most interesting quarter-car experiment is sweeping the damper rate c_s. Soft setups (low c) give better isolation over rough roads but allow the body to oscillate for longer. Stiff setups (high c) kill oscillation quickly but transmit more shock directly:
for label, c in [("soft (800)", 800), ("stock (1500)", 1500), ("stiff (3500)", 3500)]:
model = QuarterCarModel(250, 40, 18_000, c, 200_000)
r = simulate(model, (0, 5), dt=0.001, inputs=road_bump)
z_s_ddot = np.gradient(r.state[:, 1], r.time)
rms = np.sqrt(np.mean(z_s_ddot**2))
print(f"{label:20s} RMS body accel = {rms:.3f} m/s²")
Visualising results
simweave.viz.vehicle_dynamics.plot_vehicle_metrics produces a multi-panel Plotly figure showing body displacement, velocity, wheel travel, tyre deflection, and (optionally) tyre force — all in a single call:
from simweave.viz.vehicle_dynamics import plot_vehicle_metrics
fig = plot_vehicle_metrics(result, model=model)
fig.show()
The resulting figure makes the comfort/handling trade-off visible at a glance: the soft setup has a smaller initial spike but rings for longer; the stiff setup has a sharp transient but settles fast.
Half Car Models: Adding Pitch and Roll¶
A quarter-car tells you about one corner. The half-car models extend this by coupling two corners — either front and rear (pitch dynamics) or left and right (roll dynamics).
HalfCarModel (pitch) adds the vehicle's pitch inertia. This matters when braking or accelerating — weight transfer shifts load between axles and the front/rear springs compress by different amounts.
RollCarModel captures the lateral equivalent: cornering loads the outer suspension while unloading the inner. Roll stiffness and roll centre height are tuned by motorsport engineers for handling balance.
from simweave.continuous.systems import HalfCarModel
def road_pair(t):
"""Front wheel hits bump at t=1, rear follows at t=1.15 s (wheelbase/speed lag)."""
bump = lambda t0: 0.08 * np.sin(np.pi * (t - t0) / 0.5) if t0 < t < t0 + 0.5 else 0.0
return bump(1.0), bump(1.15) # (front z_r, rear z_r)
model = HalfCarModel(
mass_f=400.0, mass_r=350.0, # front/rear sprung mass (kg)
I_pitch=1_200.0, # pitch moment of inertia (kg·m²)
k_f=22_000.0, k_r=20_000.0, # suspension stiffnesses (N/m)
c_f=1_600.0, c_r=1_400.0, # suspension damping (Ns/m)
L=2.7, # wheelbase (m)
h=0.55, # centre-of-gravity height (m)
road=road_pair,
)
result = simulate(model, (0, 5), dt=0.001)

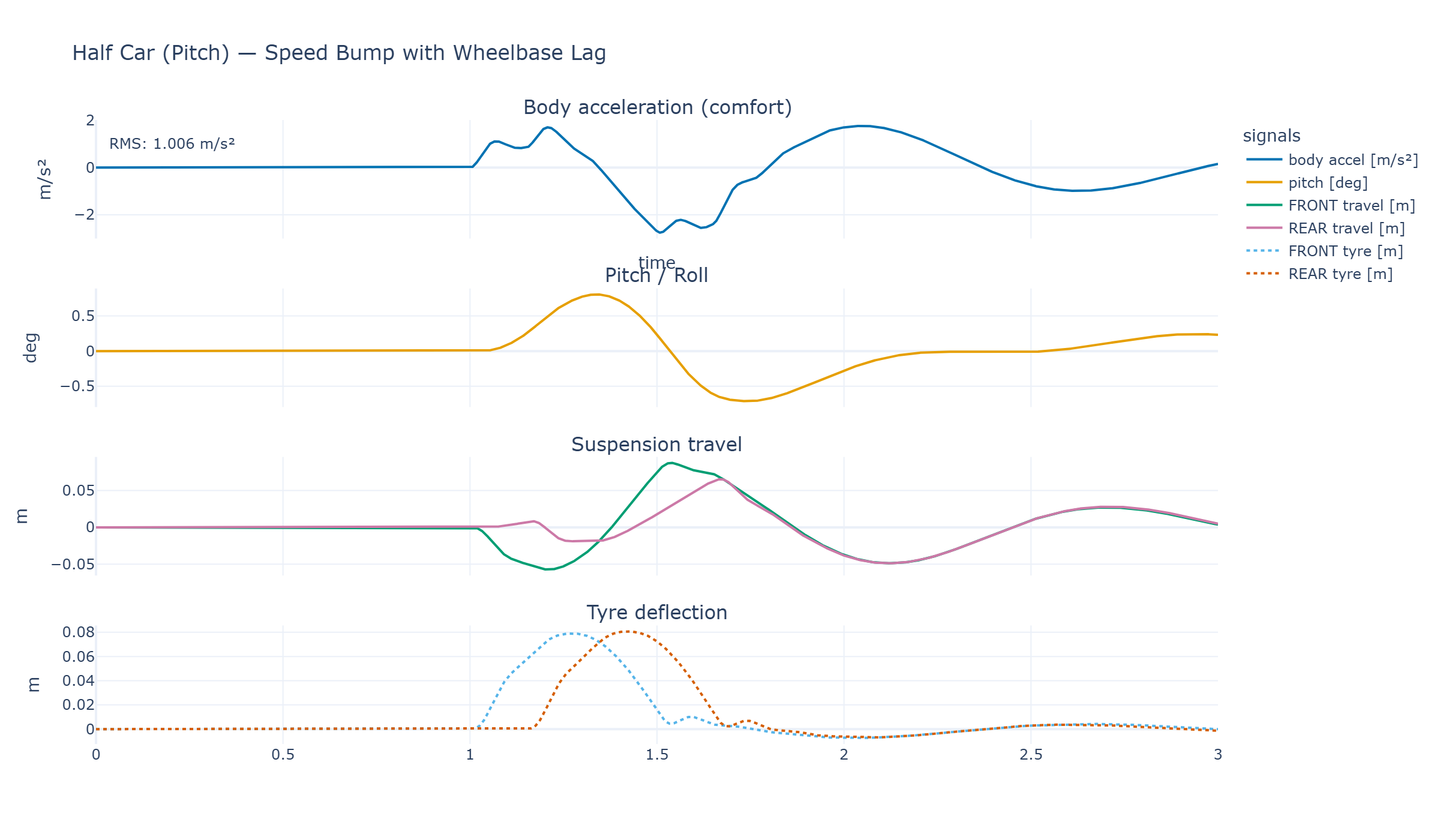

The state vector expands to four degrees of freedom: front and rear body positions plus body pitch angle and pitch rate.
Full Car: Seven Degrees of Freedom¶

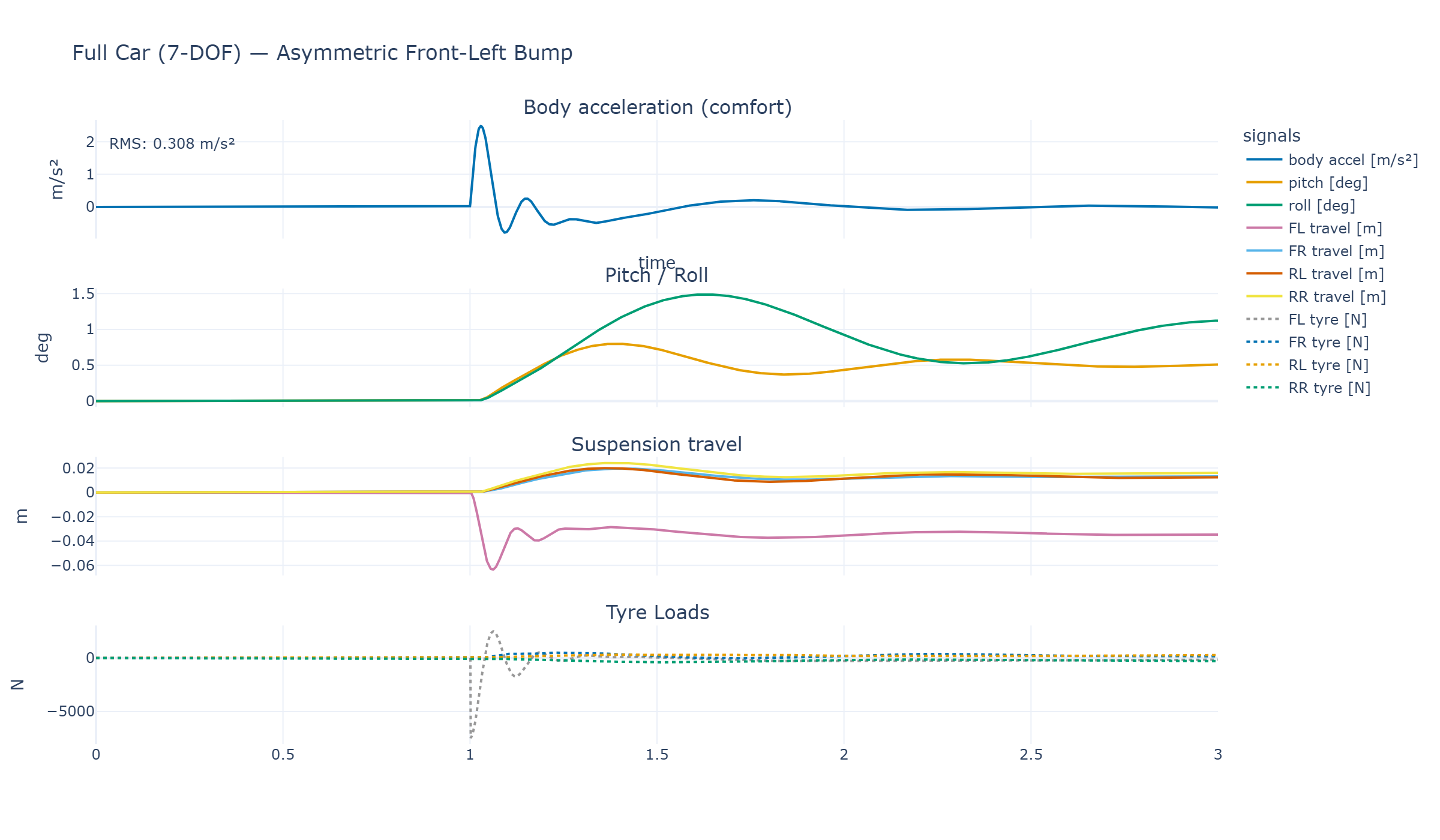

The FullCarModel couples all four corners and tracks heave (vertical bounce), pitch (nose-up/down), roll (left/right lean), and lateral and longitudinal dynamics, plus the four unsprung masses. This is the model used when you need to study how a road surface asymmetry (e.g. a pothole on one side) feeds into combined pitch and roll.
from simweave.continuous.systems import FullCarModel
model = FullCarModel(
m_total=1_200.0, # total sprung mass (kg)
I_pitch=2_500.0, # pitch inertia (kg·m²)
I_roll=2_200.0, # roll inertia (kg·m²)
I_yaw=60.0, # yaw inertia (kg·m²) — not excited by vertical inputs
k_f=20_000.0, # front suspension stiffness (N/m)
k_r=18_000.0, # rear suspension stiffness (N/m)
c_f=1_500.0, # front damping (Ns/m)
c_r=1_400.0, # rear damping (Ns/m)
L=2.7, # wheelbase (m)
W=1.5, # track width (m)
h=0.55, # CG height (m)
)
def asymmetric_input(t):
"""Front-left pothole only — excites both pitch and roll."""
fl = 0.05 if t > 1.0 else 0.0
return (fl, 0.0, 0.0, 0.0) # (FL, FR, RL, RR)
result = simulate(model, (0, 3), dt=0.001, inputs=asymmetric_input)
typed = model.wrap_states(result)
print("Peak heave :", typed["z_s"].max()) # Distance
print("Peak pitch :", typed["theta"].max()) # Angle
print("Peak roll :", typed["phi"].max()) # Angle
The wrap_states() call here returns Angle quantities for pitch and roll — which means downstream calculations like computing tyre normal force will refuse to accept them where a Distance is expected. That's the units system doing its job.
Ideal Controllers: Skyhook and Groundhook¶
Passive suspension is a fixed compromise between comfort and handling. Active and semi-active suspension systems use controllable dampers (electro-rheological fluid, electromagnetic actuators) to adapt in real time. But what's the theoretical best you could possibly do?
Two benchmark controllers answer that question:
Skyhook¶

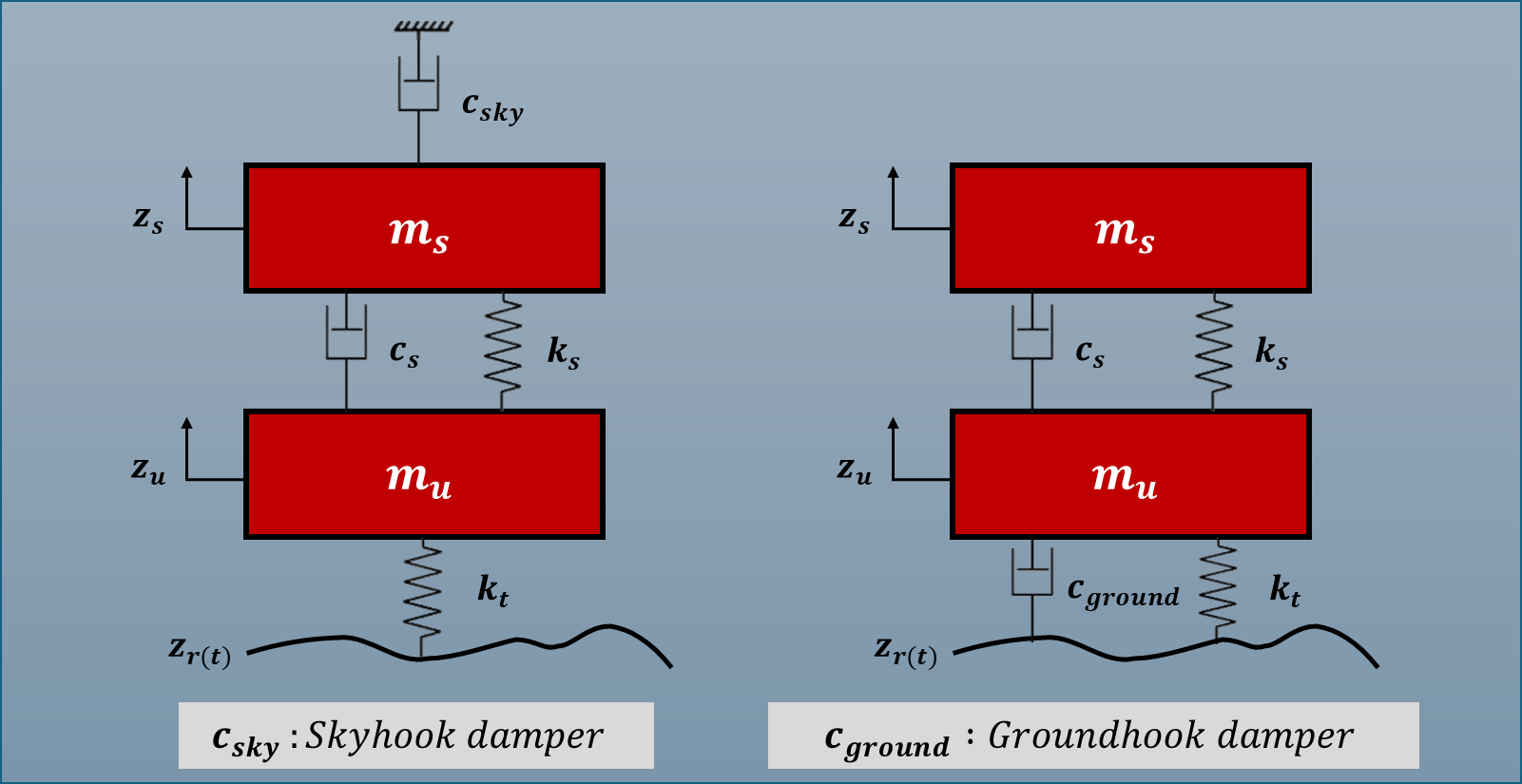

Imagine attaching a damper between the car body and a fixed point in the sky — an inertial reference that doesn't move with the road. The control force would be:
This maximally isolates the body from road disturbances because it damps relative to the inertial frame rather than the wheel. The ride is as smooth as physics allows.
The catch: no fixed point in the sky exists. But a controllable damper can emulate this by varying its damping coefficient every timestep based on the measured body velocity.
Groundhook¶
The mirror image: a damper between the wheel and the ground:
This maximises tyre-road contact by suppressing wheel hop. Handling and braking are as good as they can be. But body acceleration suffers — disturbances transmit more freely upward.
Using the Built-in Controllers¶
SimWeave ships SkyhookDamper, GroundhookDamper, and HybridActiveDamper in simweave.continuous.control. All three plug directly into the controller parameter of QuarterCarModel, HalfCarModel, and FullCarModel — no subclassing required:
from simweave.continuous.systems import QuarterCarModel
from simweave.continuous.control import (
SkyhookDamper, GroundhookDamper, HybridActiveDamper, SemiActiveWrapper,
)
base_kwargs = dict(
sprung_mass=250.0, unsprung_mass=40.0,
suspension_stiffness=18_000.0, damping=1_500.0,
tyre_stiffness=200_000.0,
)
passive = QuarterCarModel(**base_kwargs)
skyhook = QuarterCarModel(**base_kwargs, controller=SkyhookDamper(damping=3_000.0))
groundhook = QuarterCarModel(**base_kwargs, controller=GroundhookDamper(damping=3_000.0))
blended = QuarterCarModel(**base_kwargs,
controller=HybridActiveDamper(c_sky=3_000.0,
c_ground=3_000.0,
alpha=0.5))
The SemiActiveWrapper enforces a dissipative constraint on any controller — ensuring the force direction never adds energy to the system, which is required for passively realisable (e.g. magnetorheological) dampers:
# Semi-active skyhook — physically realisable with a controllable damper
semi_active = QuarterCarModel(**base_kwargs,
controller=SemiActiveWrapper(SkyhookDamper(3_000.0)))
Run all variants and compare comfort vs road-holding:
configs = [
("Passive", passive),
("Skyhook", skyhook),
("Groundhook", groundhook),
("Blended α=0.5", blended),
("Semi-active", semi_active),
]
for name, model in configs:
r = simulate(model, (0, 5), dt=0.001, inputs=road_bump)
z_s_ddot = np.gradient(r.state[:, 1], r.time)
tyre_def = r.state[:, 2]
print(f"{name:20s} RMS accel = {np.sqrt(np.mean(z_s_ddot**2)):.3f} m/s² "
f"Peak tyre deflection = {np.max(np.abs(tyre_def))*1000:.1f} mm")

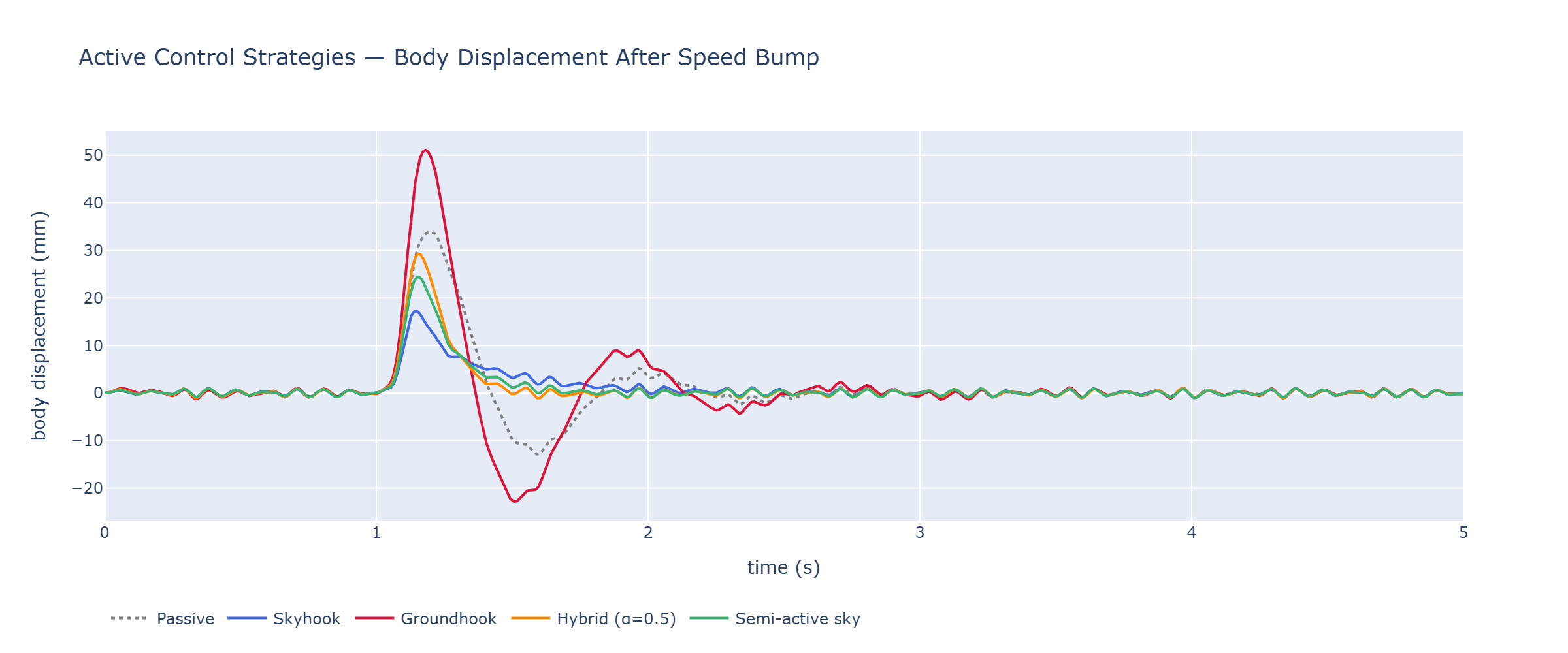

What to expect

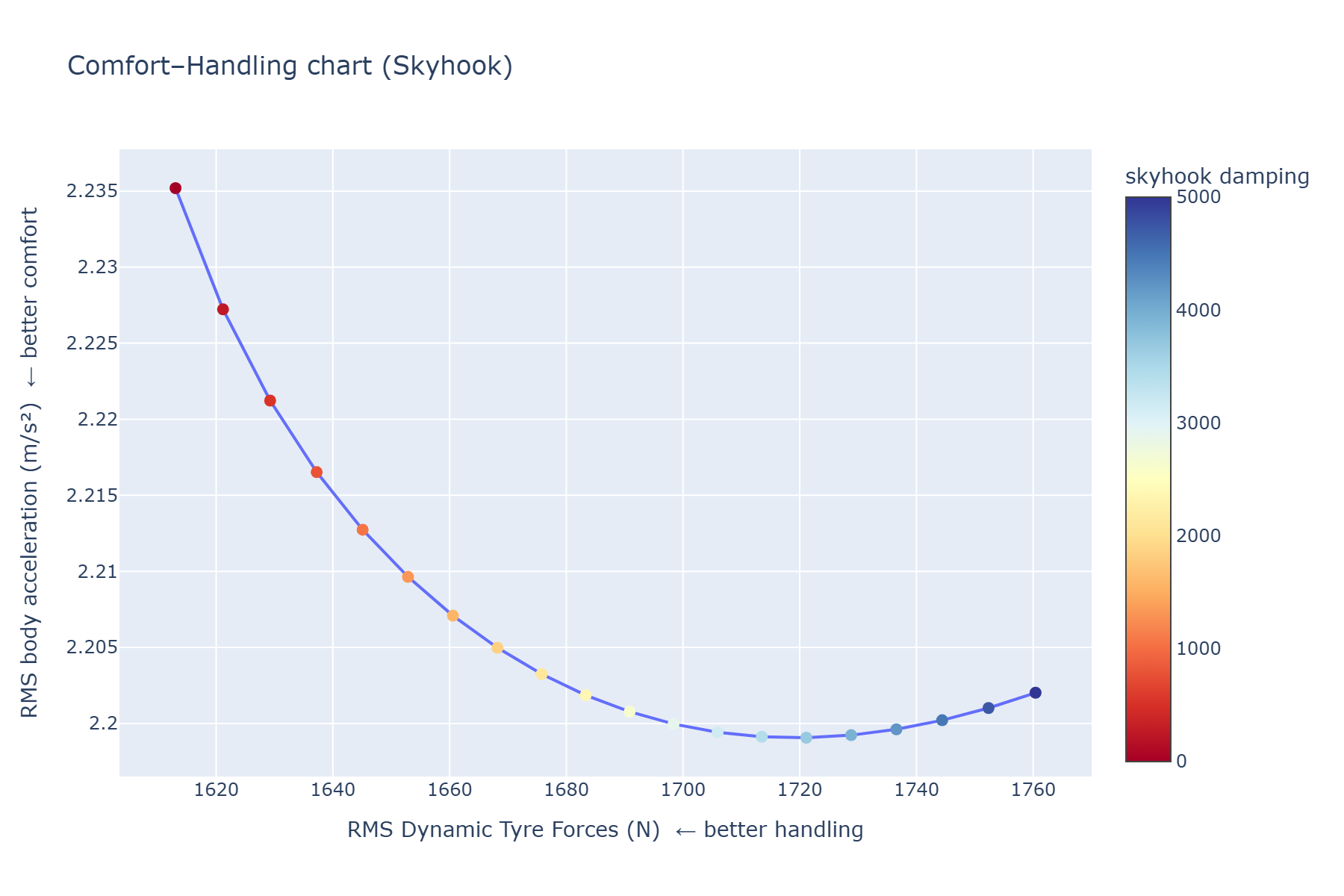

Skyhook will show the lowest RMS body acceleration — smoothest ride. But tyre deflection (and hence contact-force variation) will be higher than passive; the controller is sacrificing road holding for comfort.

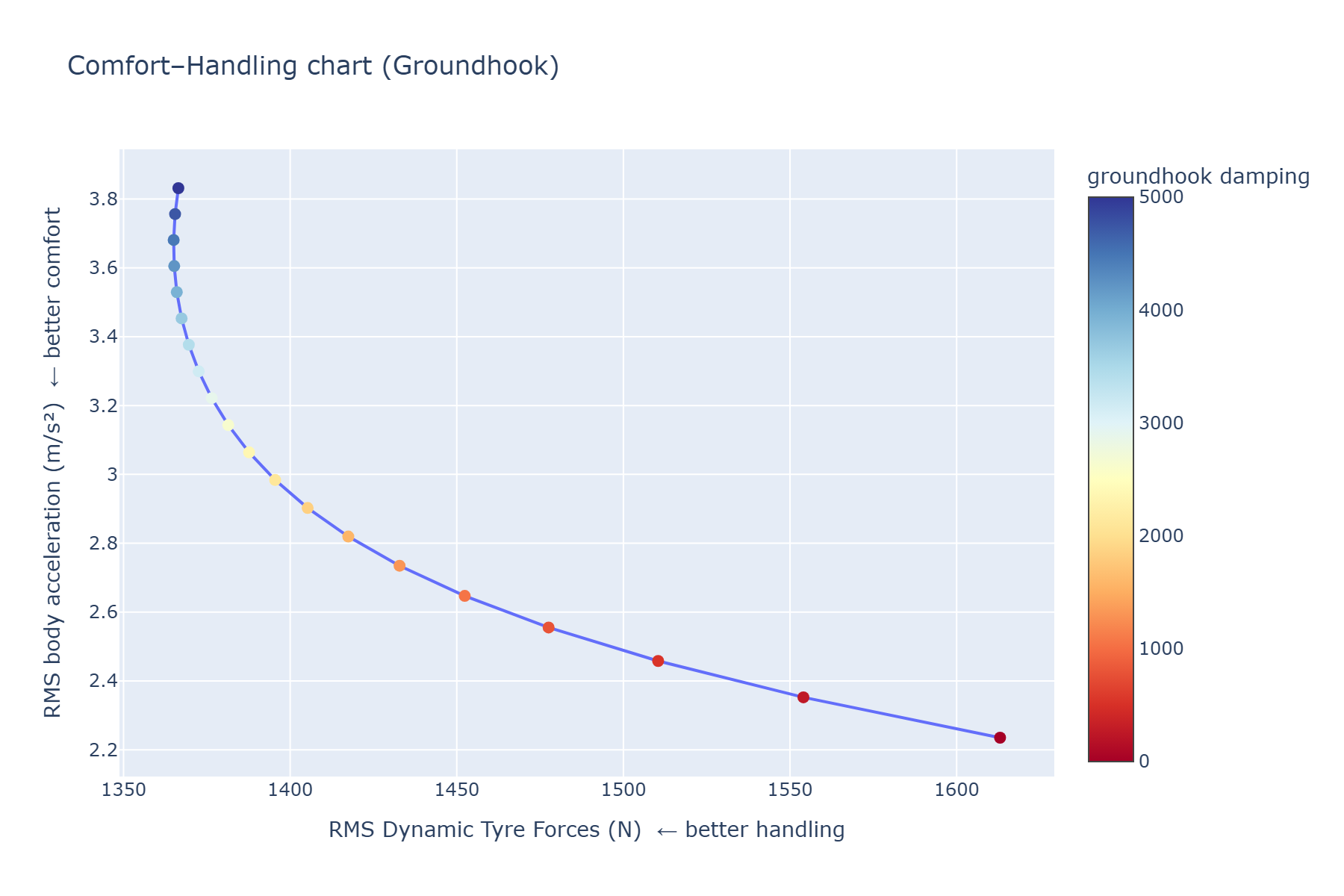

Groundhook will show the best tyre contact but the highest body acceleration — the car body follows road disturbances more directly.

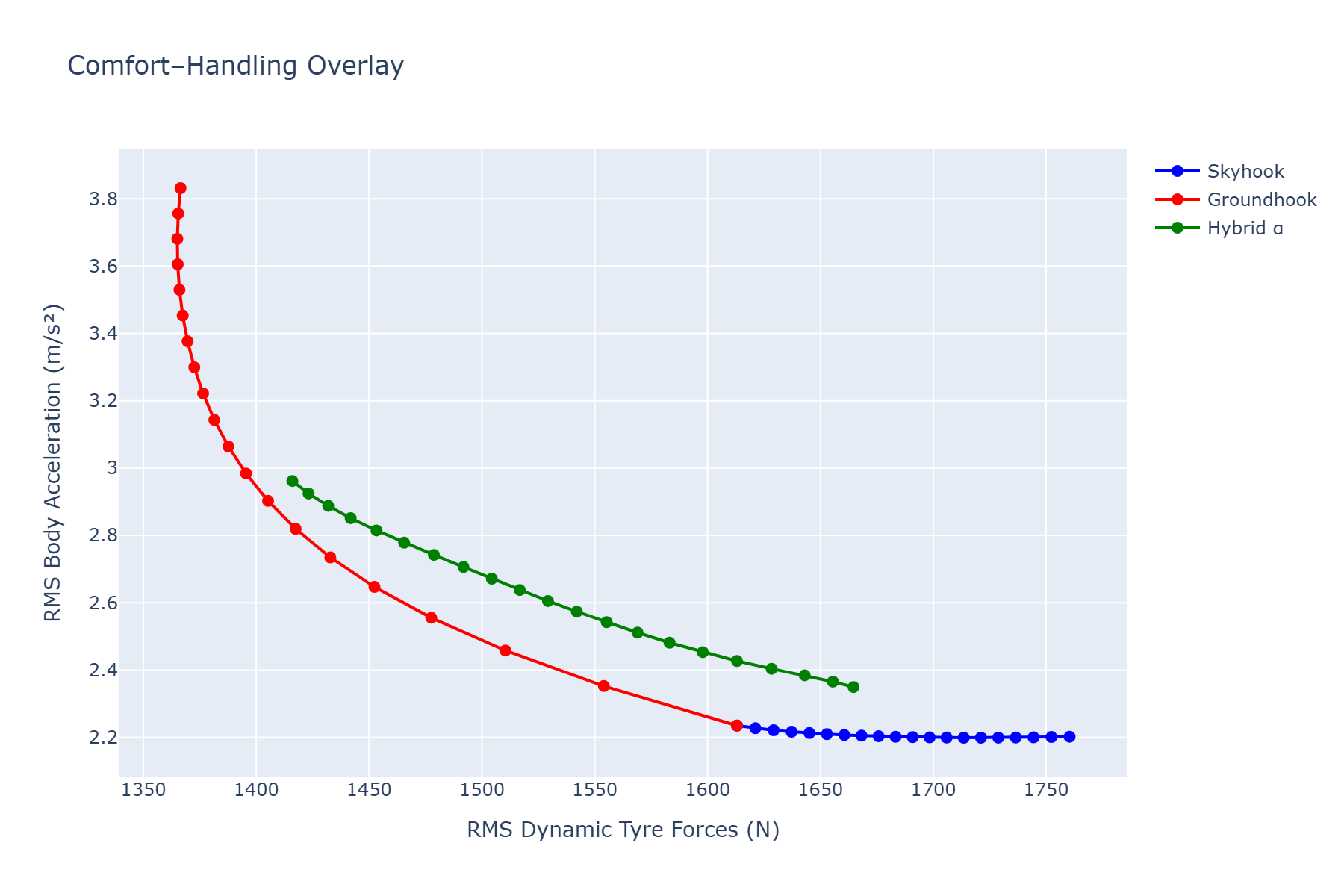

Blended (HybridActiveDamper) sits between them. alpha=1.0 recovers pure skyhook; alpha=0.0 recovers pure groundhook. Running a sweep across alpha from 0 to 1 produces the comfort–handling Pareto front — a standard design tool in automotive NVH work.
The SemiActiveWrapper variant is important for practical applications: a real controllable damper can only dissipate energy, not add it. The wrapper clips any positive-work forces, which slightly degrades theoretical performance but keeps the model physically honest.
How the controllers work under the hood
Each controller implements force(body_velocity, wheel_velocity) -> float. The vehicle model calls this at every integration step and adds the returned force to the sprung mass equation. This clean interface means you can implement your own custom controller (e.g. a look-ahead preview controller or an LQR) in a single method, and the rest of the pipeline — integration, wrap_states(), plot_vehicle_metrics() — works without modification.
SimWeave vs the Alternatives¶
| Approach | Strength | Weakness |
|---|---|---|
scipy.integrate.solve_ivp |
Flexible, adaptive step | No units, no built-in models, no Monte Carlo |
| MATLAB/Simulink | Industry standard, Simscape library | Expensive, closed, no Python ecosystem |
python-control |
Linear systems, Bode/root locus | Continuous only, no events or discrete integration |
| SimWeave | Units-aware, built-in models, hybrid DES+ODE, Monte Carlo | Younger library, smaller community |
If you already have Simulink, there's no urgent reason to move quarter-car work. If you're building an open-source tool chain — for an academic project, a startup, or a software-defined vehicle platform — SimWeave lets you run suspension analysis, fleet maintenance scheduling, and traffic signal optimisation from one coherent library, in pure Python.
What's Next¶
The suspension models shown here are all passive or idealised active. The next natural step is implementing a PID-controlled active suspension (SimWeave already ships a PID controller example in demo 20 for a thermal system — the same controller class works on a suspension force). Beyond that:
- Feed real road profiles from measured accelerometer data as inputs.
- Run Monte Carlo sweeps over road roughness to compute probabilistic ride quality distributions.
- Couple the suspension model to a tyre friction model for combined longitudinal–lateral dynamics.
Medium Edition Notes¶
If you arrived here from Medium, the key ideas are: (1) suspension design is a trade-off between body comfort and tyre road-holding that can be precisely quantified with a 2-DOF model; (2) the Skyhook/Groundhook controllers are the theoretical ideals for each end of the trade-off; (3) SimWeave lets you build, extend, and sweep these models in pure Python with dimensional safety baked in. The full code, with all imports and visualisation helpers, is in the companion notebook.
